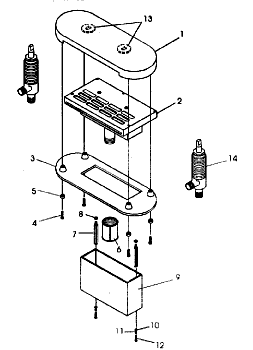

Water Rainbow Ultra Fill Spout
| Item | Part Name | P/N | Price | Add | | 1 | Cover, Ultra, Chrome | A341827 | $149.00 |  | | 1 | Cover, Ultra, Bright Brass | A341829 | $171.00 | | | 1 | Plate, Ultra, Chrome | A342827 | $81.00 | | | 2 | Fillspout Assembly, Open | A165000 | $126.00 | | | 3 | Plate, Ultra, Bright Brass | A342829 | $92.00 | | | 4 | Screw, Hex Washer Hd, #4 x .63"L., Tp 25 | G792000 | $0.70 | | | 5 | Spacer Nylon, .38" O.D., .25"L. | G791000 | $0.65 | | | 6 | Coupling, 3/4", FPT x FPT | B374000 | $13.00 | | | 7 | Spacer, 1/4-20, Brass | B372000 | $4.90 | | | 7 | Spacer, 1/4-20, Brass Short | B136000 | $6.15 | | | 8 | Washer, .50" x .27" x .09 Thick | B373000 | $0.75 | | | 9 | Extension, 2.31", Chrome w/Logo | B870000 | $59.00 | | | 9 | Extension, 2.31", Bright Brass w/Logo | B871000 | $79.00 | | | 9 | Extension, 3.31", Chrome w/Logo | B872000 | $73.00 | | | 9 | Extension, 3.31", Bright Brass w/Logo | B873000 | $84.00 | | | 10 | Washer, 1/4 Flat, Type B Pin Wd Ser | 4006832 | $0.65 | | | 11 | Nut, Locking Hd Kep Type 1/4-20 | 4034832 | $0.65 | | | 12 | Bolt, Hex, Full Thread, 1/4-20 x 1.50" | 3947832 | $0.65 | | | 13 | Gasket, Faucet Handle | 2329000 | $0.65 | | | 14 | Valve, Supply | A847000 | $80.00 | | | *N.S. | Hardware Kit, Valve Mount | A848000 | $11.75 | | | *N.S. | Hook-Up Kit, Bath | A894000 | $11.75 | |
*Not Shown on diagram.
|
|
|
|
